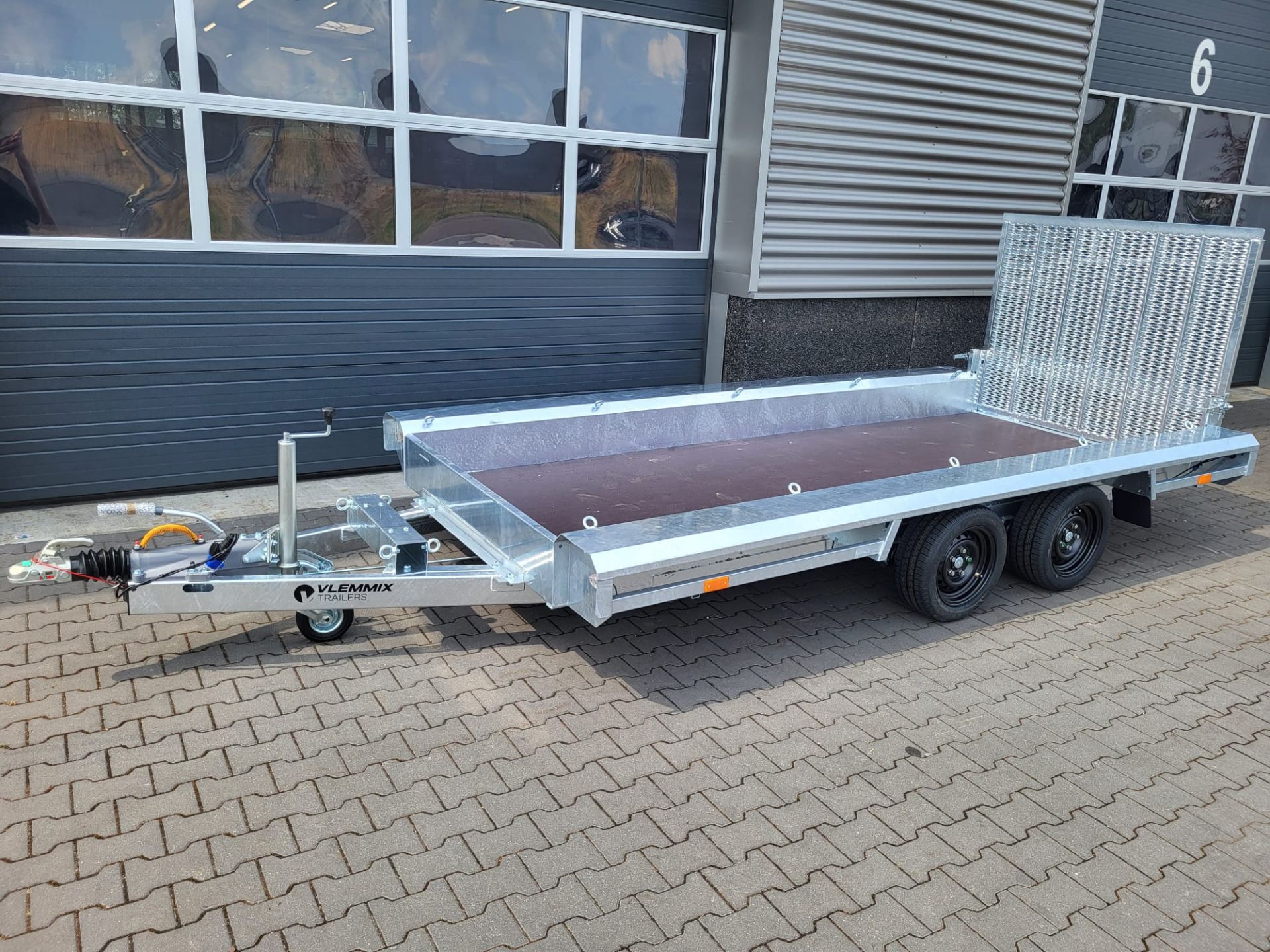

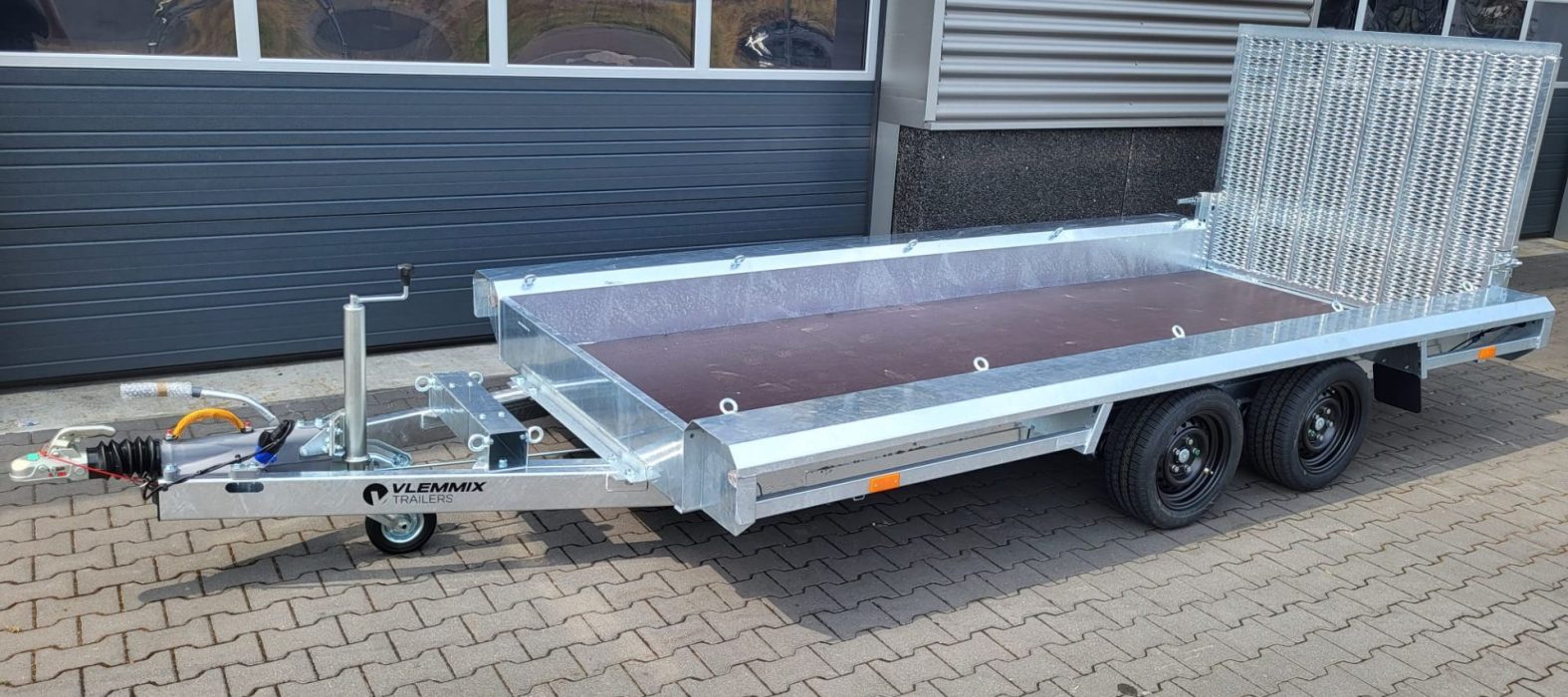

Machine transporter 3500kg – 4m x 1.5m
Narrow design with maximum payload
The Machinery Transporter 3500 kg – 400 × 150 is a versatile and robust trailer within this weight class. With a loading platform of 400 × 150 cm, this trailer is ideal for narrower machines and attachments. The high payload of 2,730 kg makes this machinery transporter particularly suitable for transporting mini excavators, access platforms and forklifts.
Heavy-duty axles and low loading height
With two 1,800 kg Knott axles, you are assured of high-quality axles under your machinery transporter. Knott axles are known for their exceptional reliability and long service life and are a market leader in Europe. By mounting the axles as low as possible, Vlemmix Trailers achieves a low loading height of just 34 cm.
Fully hot-dip galvanised chassis
The Machinery Transporter 3500 kg – 400 × 150 is fully hot-dip galvanised. This galvanising process creates a protective coating that shields the steel against corrosion. As a result, the trailer offers excellent resistance to wear and prevents rust formation in the event of scratches or minor damage. In addition to its strong and reliable construction, all machinery transporters from Vlemmix Trailers are neatly finished. Sharp edges and zinc or metal points are carefully finished, and all lighting cables are neatly routed inside the main beams and loading ramp of the chassis.
Loading ramp with excellent grip
The loading ramp is fitted as standard with a 2,500 N gas strut and opens and closes smoothly and safely. The perforated anti-slip grating provides excellent grip when driving machines onto the trailer. Combined with the 34 cm loading height and the 130 cm long loading ramp, this results in a shallow loading angle. The loading ramp can be extended if required for additional ease of use.
Customise your machinery transporter
Interested in the Machinery Transporter 3500 kg – 400 × 150, but would you like to tailor it to your specific requirements? No problem. All machinery transporters can be extended with a wide range of optional extras.
Optional extras
Sliding loading ramps – 165 cm
Loose loading ramps that can be positioned to suit different track widths and machines.
Extended loading ramp
Creates a less steep loading angle, making it easier to load machines.
Aluminium chequer plate
Anti-slip finish for extra grip when driving onto the trailer and working on it.
Drawbar storage box
Practical storage space on the drawbar for ratchet straps or small tools.
Bucket support
Allows an excavator bucket to be transported safely.
Winch on winch support
For pulling machines onto the trailer when they cannot drive on under their own power.
Spare wheel mounted on drawbar
Spare wheel mounted at the front of the trailer, easily accessible in case of a puncture.
Spare wheel mounted on chassis
Spare wheel securely mounted on the chassis.
Wheel chock (black)
Prevents the trailer from rolling when parked or during loading and unloading.
Bucket tray with storage box
Tray for excavator buckets with an integrated storage box for tools.
Aluminium toolbox
Lightweight and durable toolbox for ratchet straps and accessories.
Mounted toolbox
Steel toolbox permanently mounted on the trailer.
Spare wheel with bucket tray and drawbar box
Combination of additional storage space and a spare wheel.
Wheel chocks with bucket tray and drawbar box
Complete combination for added safety and functionality.
SCM-approved lock
Reduces the risk of theft and may offer insurance benefits.
Lashing points – top
Lashing points on top of the chassis for securing machines.
Lashing points – underside
Additional lashing points underneath the chassis for extra securing.
Shock absorbers fitted
Provide smoother handling and increased stability during transport.
Heavy-duty jockey wheel – 500 kg
Makes manoeuvring easier, even with heavier loads.
Gooseneck version
Ensures better weight distribution and more stable driving behaviour.
*Do you have any other special wishes? Please feel free to contact us to discuss the possibilities.
