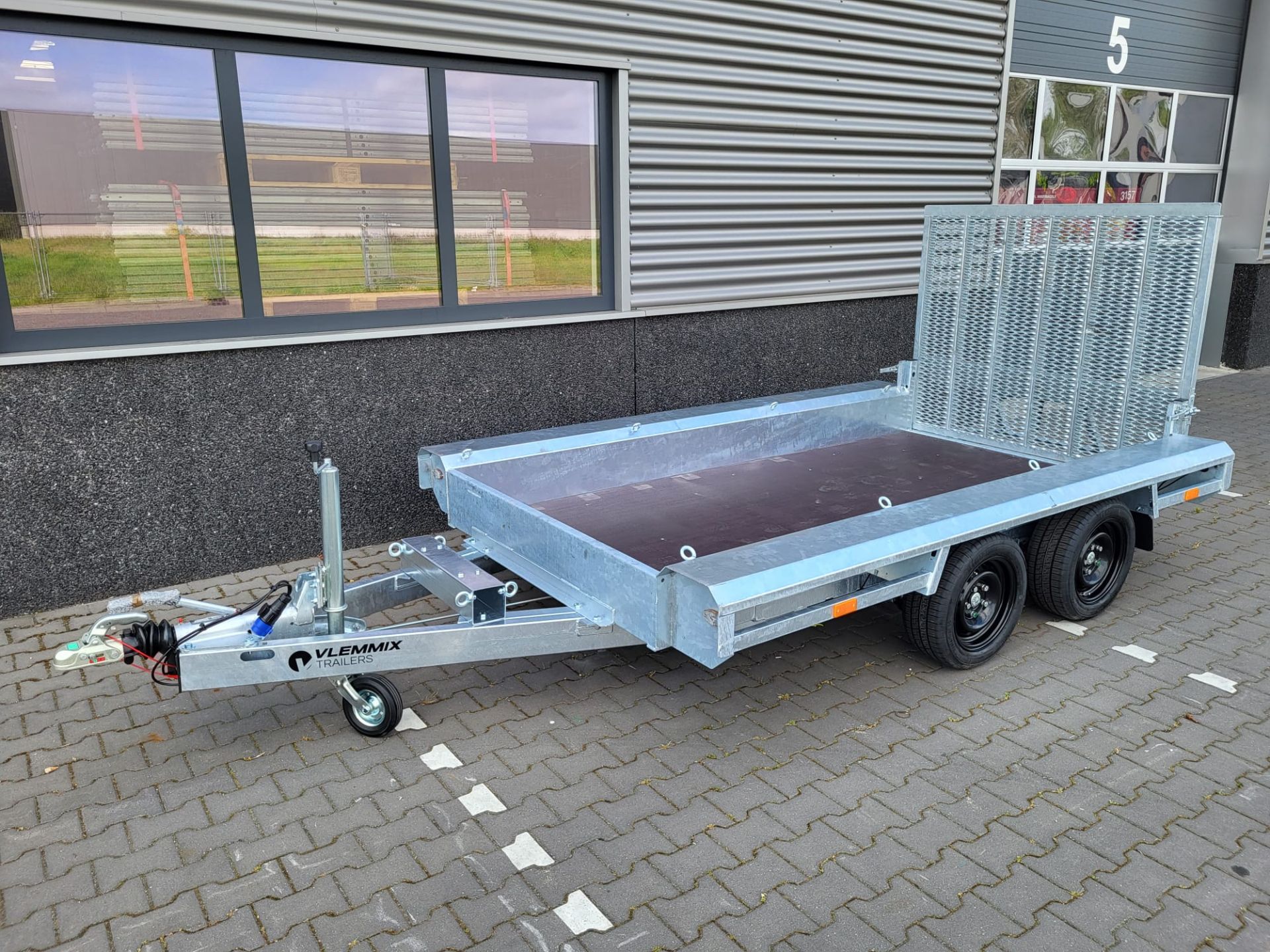

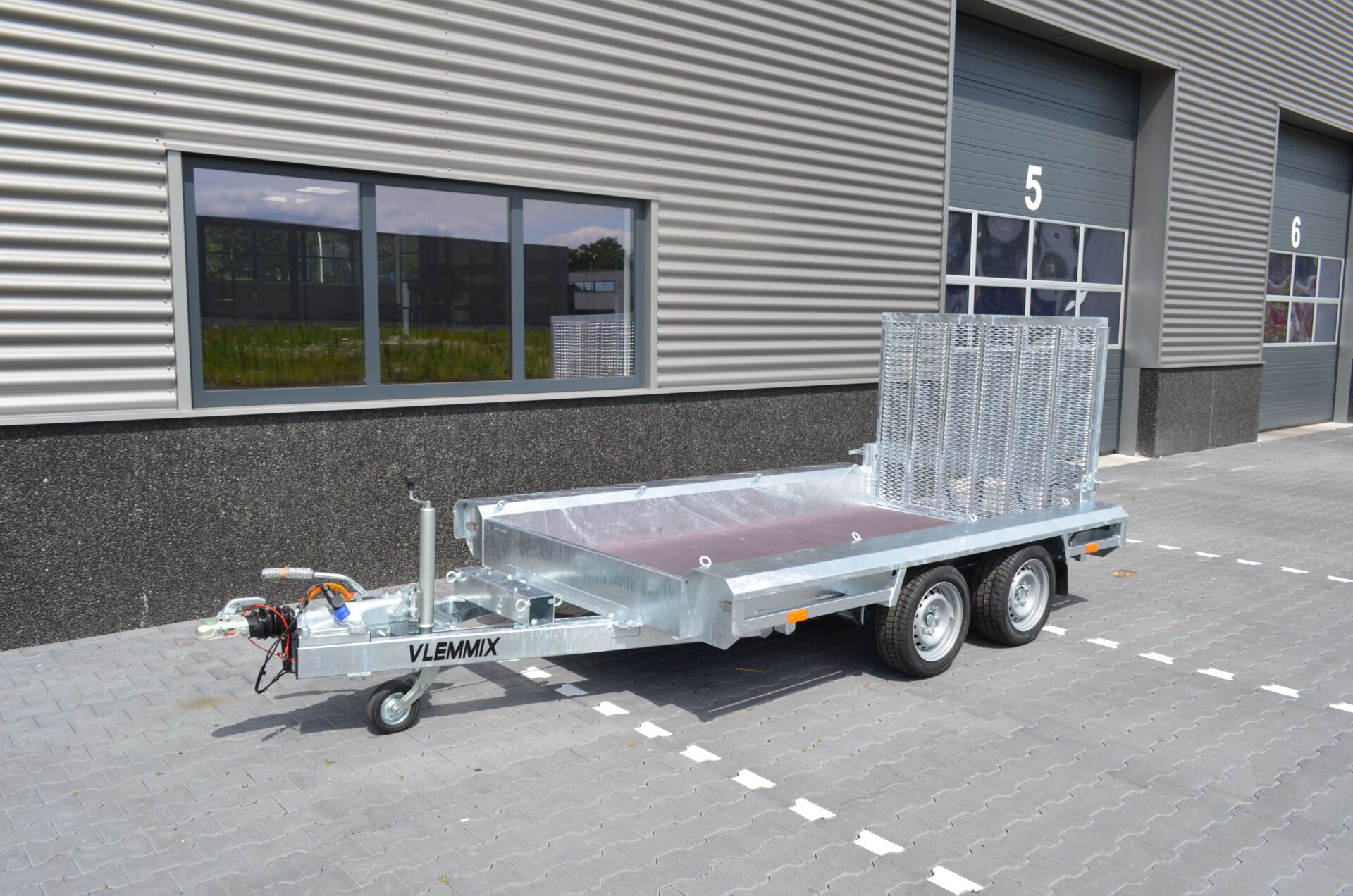

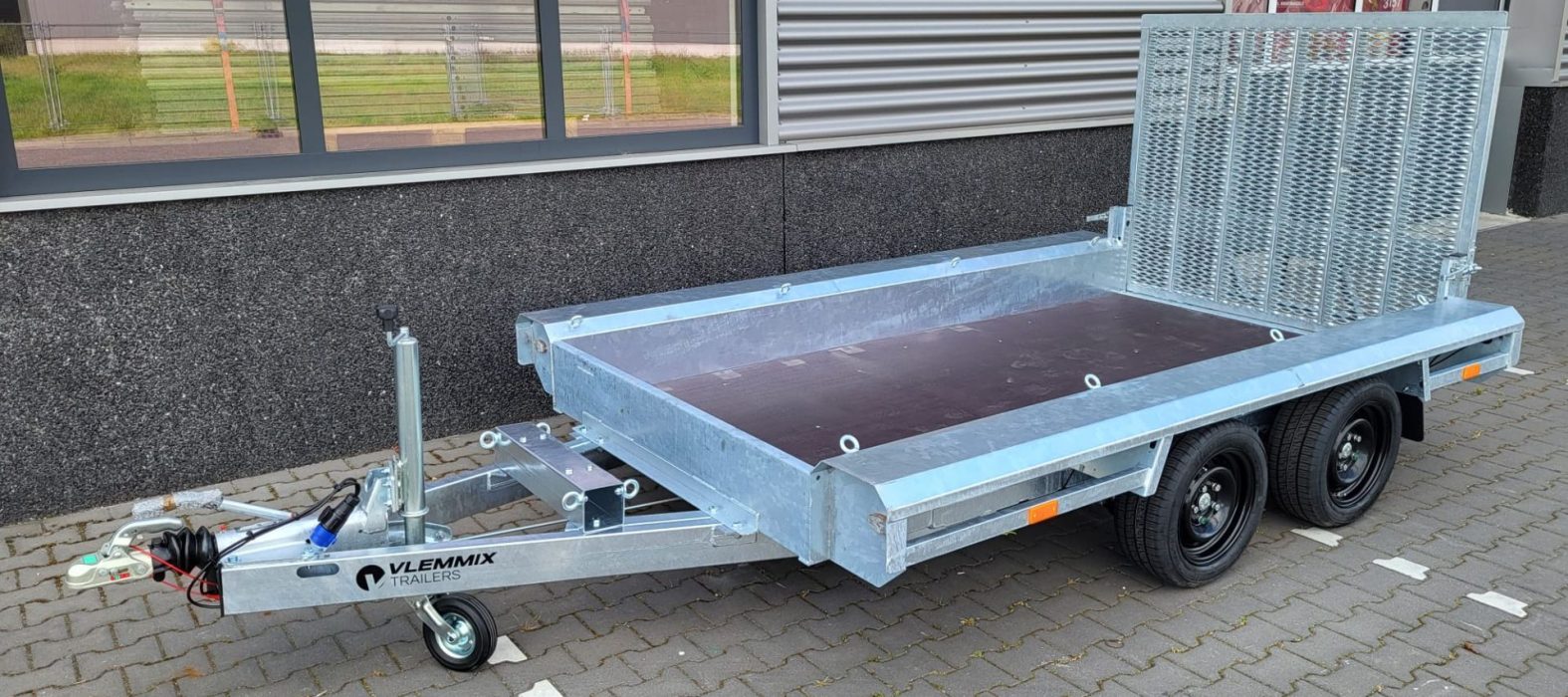

Machine transporter 2700kg – 3m x 1.5m
Strong, stable and easy to use
The Machinery Transporter 2700 kg – 300 × 150 is a compact and robust trailer within this weight class. With overall dimensions of 482 × 210 × 167 cm, the trailer remains highly manoeuvrable, even on tight or unpaved terrain. A payload capacity of 2090 kg makes this machinery transporter suitable for transporting mini excavators, aerial work platforms, forklifts and other compact machines.
Reliable axles and low loading height
Thanks to the two 1350 kg Knott axles, you are assured of high-quality axles underneath your machinery trailer. Knott axles are known for their exceptional reliability and are therefore market leaders in Europe. By mounting the axles as low as possible, Vlemmix Trailers achieves a low loading height of just 34 cm.
Fully hot-dip galvanised chassis
The Machinery Transporter 2700 kg – 300 × 150 is fully hot-dip galvanised. This galvanising process provides a protective coating that shields the metal against corrosion. As a result, the trailer offers high resistance to wear and prevents rust formation, even in the case of scratches or minor damage.
In addition to a strong and reliable construction, all Vlemmix Trailers machinery transporters are neatly finished. Sharp edges, zinc residues and metal points are carefully removed, and all lighting cables are neatly concealed within the chassis beams and loading ramp.

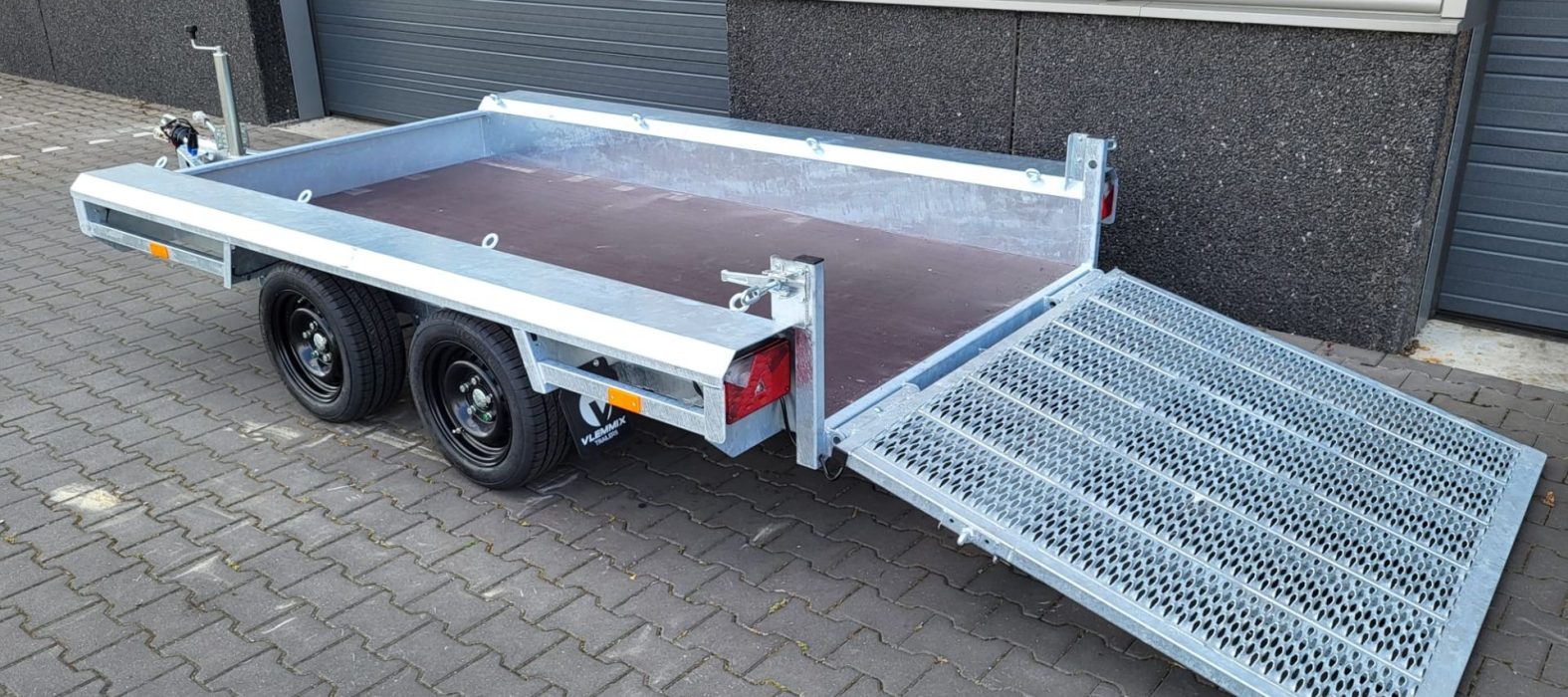

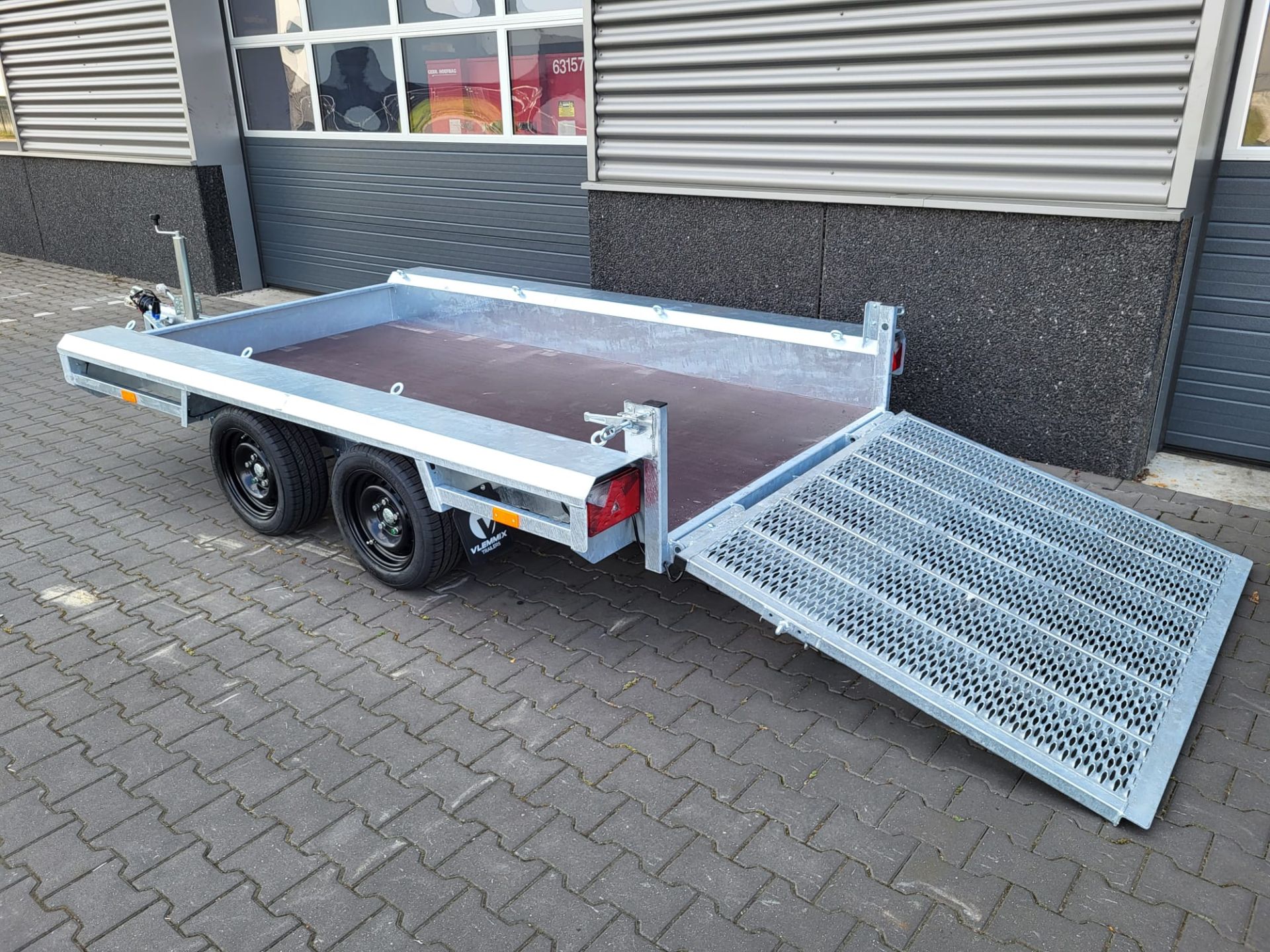

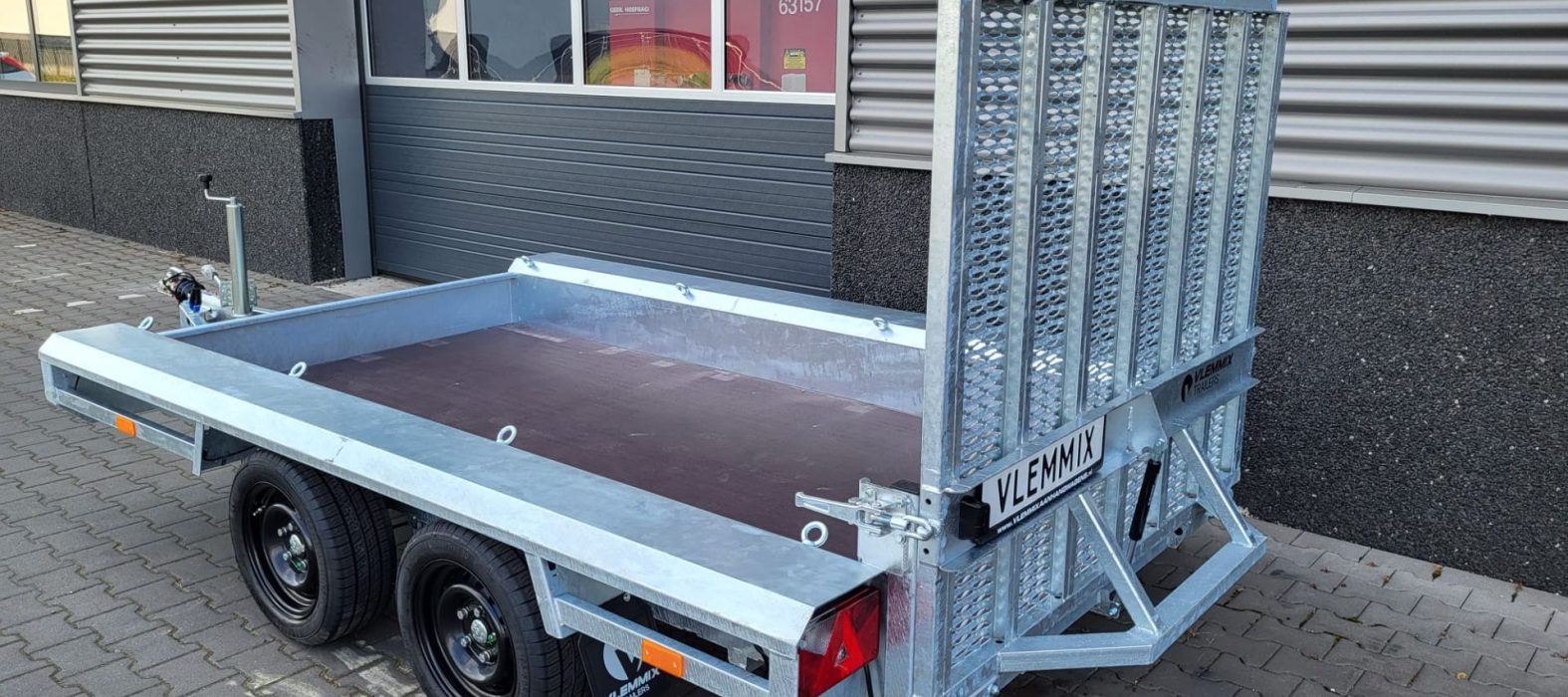

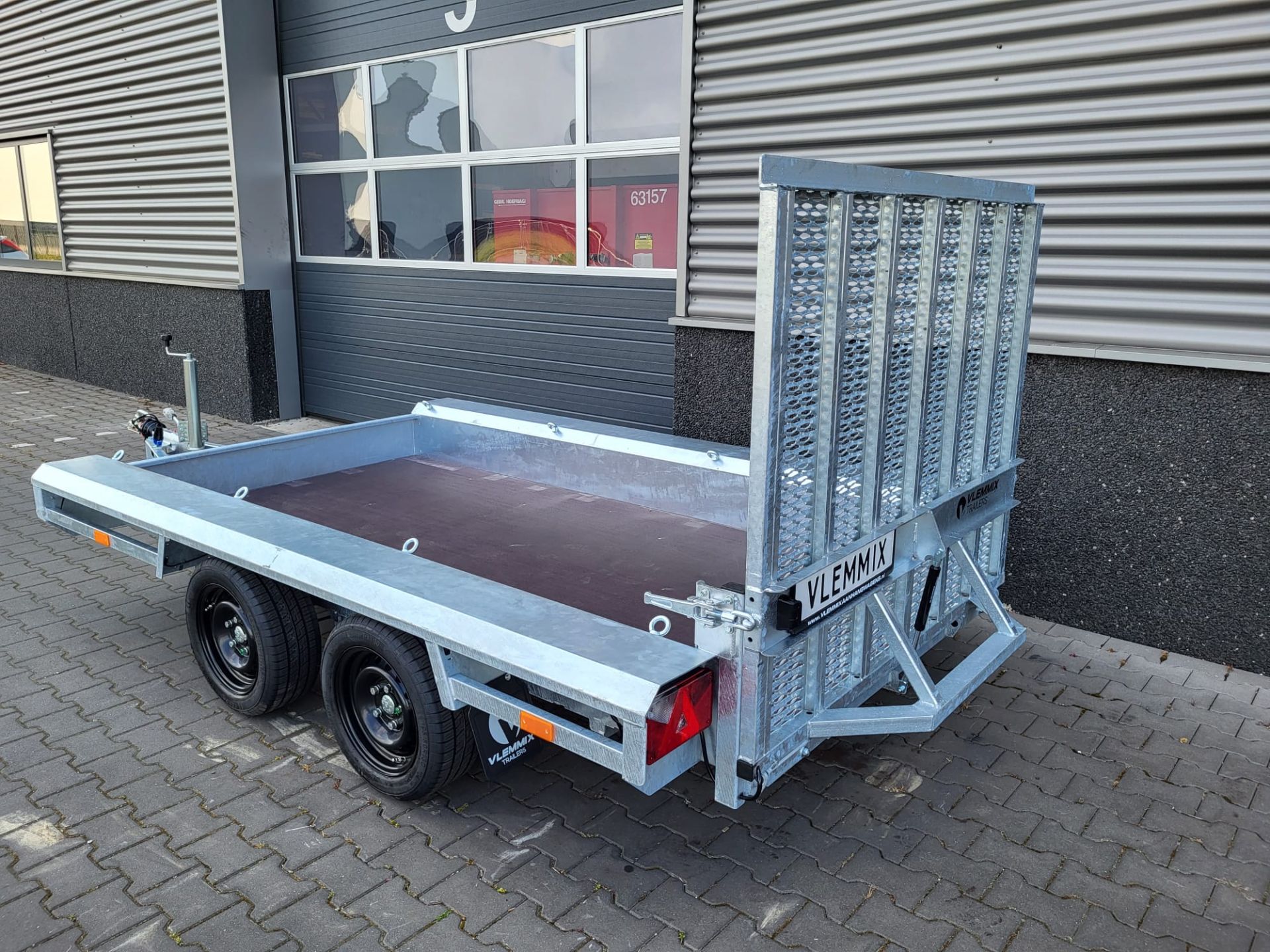

Loading ramp with excellent grip
The loading ramp is fitted with a 2500N gas strut, allowing it to open and close smoothly. The perforated anti-slip grating provides excellent grip when driving onto the trailer. Combined with the low loading height, this results in a shallow loading angle, making it easier to load machines. The loading ramp can optionally be extended.
Customise your machinery transporter
Interested in the Machinery Transporter 2700 kg – 300 × 150, but would you like to adapt it further to your needs? No problem. All machinery transporters can be extended with various optional features.
Optional extras
Sliding loading ramps – 165 cm
Loose loading ramps that can be positioned to suit different track widths and machines.
Extended loading ramp
Creates a less steep loading angle, making it easier to load machines.
Aluminium chequer plate
Anti-slip finish for extra grip when driving onto the trailer and working on it.
Drawbar storage box
Practical storage space on the drawbar for ratchet straps or small tools.
Bucket support
Allows an excavator bucket to be transported safely.
Winch on winch support
For pulling machines onto the trailer when they cannot drive on under their own power.
Spare wheel mounted on drawbar
Spare wheel mounted at the front of the trailer, easily accessible in case of a puncture.
Spare wheel mounted on chassis
Spare wheel securely mounted on the chassis.
Wheel chock (black)
Prevents the trailer from rolling when parked or during loading and unloading.
Bucket tray with storage box
Tray for excavator buckets with an integrated storage box for tools.
Aluminium toolbox
Lightweight and durable toolbox for ratchet straps and accessories.
Mounted toolbox
Steel toolbox permanently mounted on the trailer.
Spare wheel with bucket tray and drawbar box
Combination of additional storage space and a spare wheel.
Wheel chocks with bucket tray and drawbar box
Complete combination for added safety and functionality.
SCM-approved lock
Reduces the risk of theft and may offer insurance benefits.
Lashing points – top
Lashing points on top of the chassis for securing machines.
Lashing points – underside
Additional lashing points underneath the chassis for extra securing.
Shock absorbers fitted
Provide smoother handling and increased stability during transport.
Heavy-duty jockey wheel – 500 kg
Makes manoeuvring easier, even with heavier loads.
Gooseneck version
Ensures better weight distribution and more stable driving behaviour.
*Do you have any other special wishes? Please feel free to contact us to discuss the possibilities.
