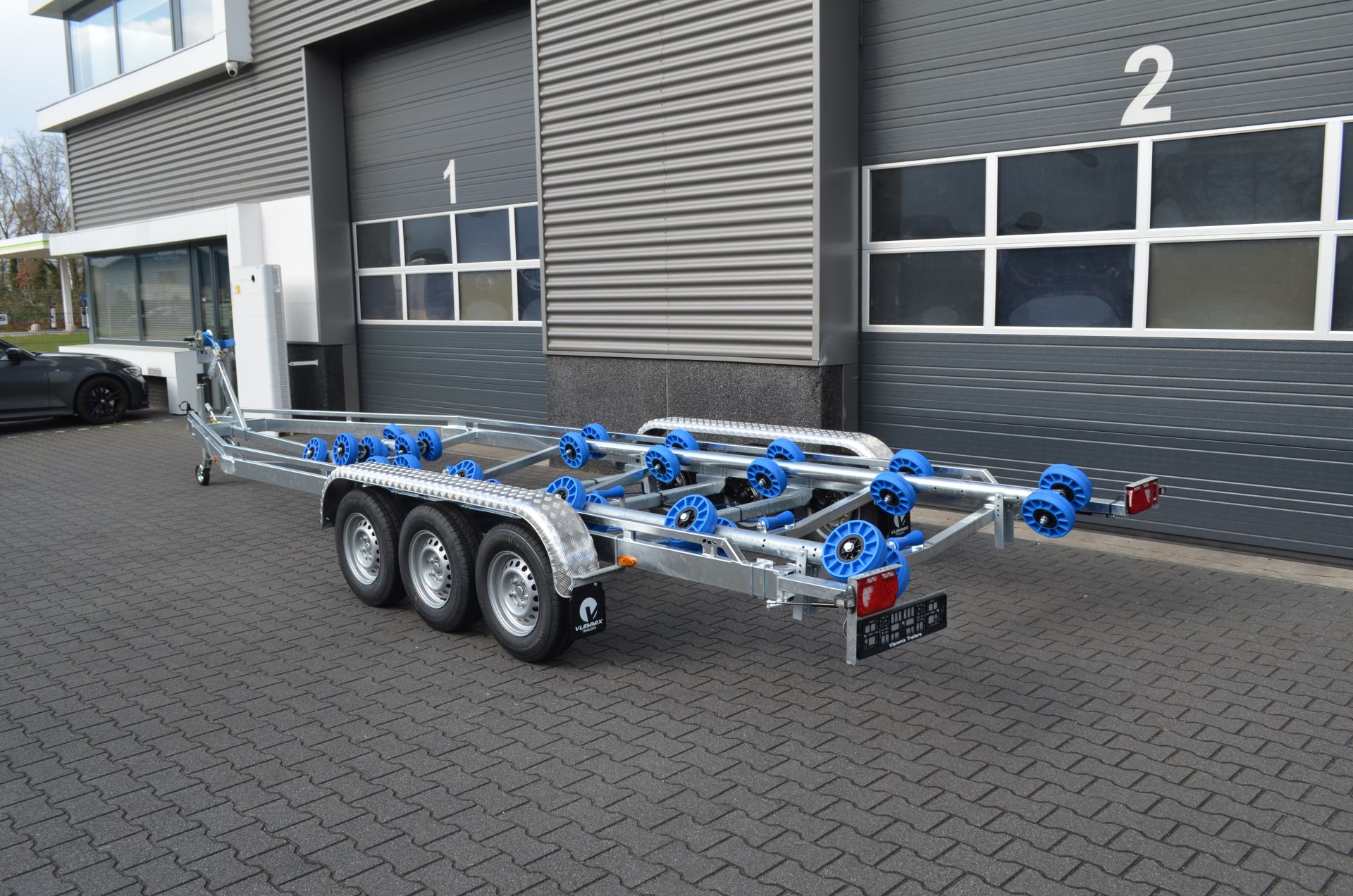

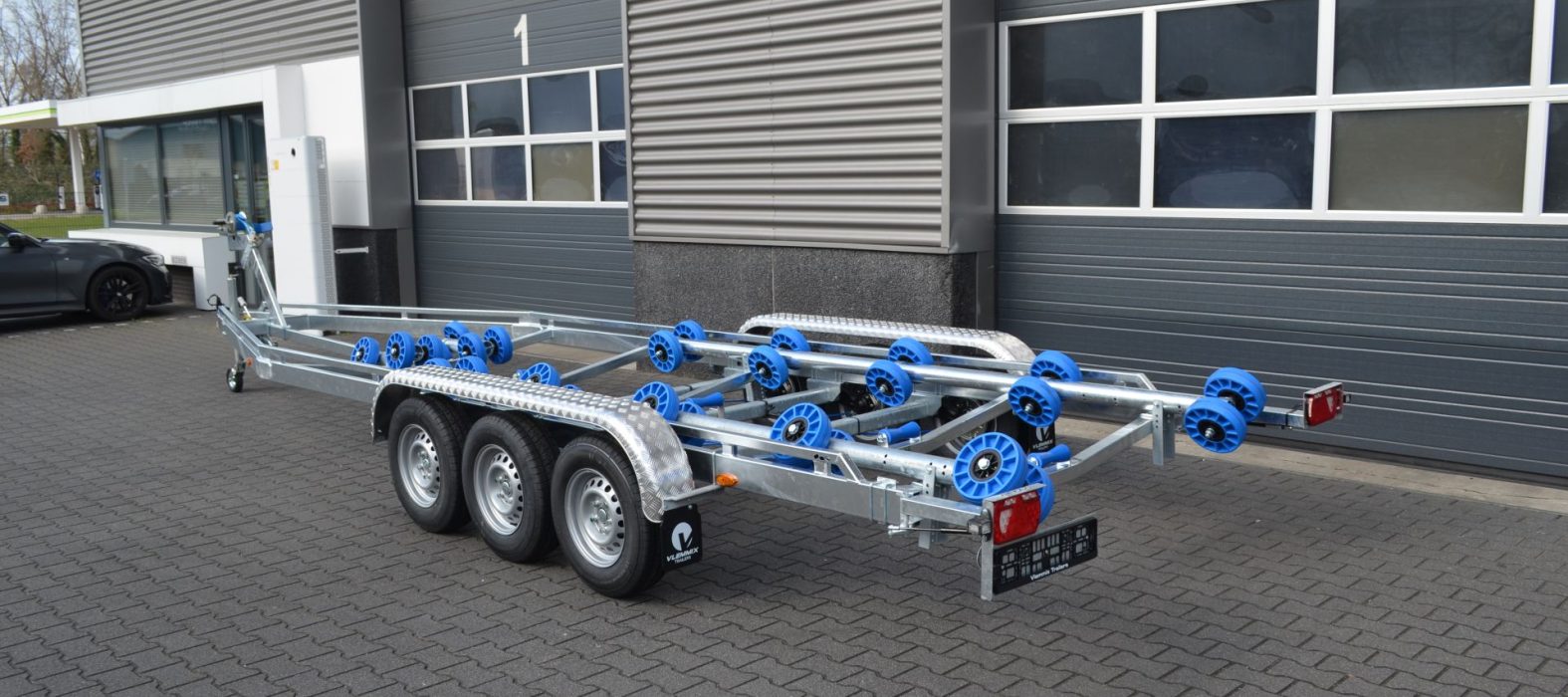

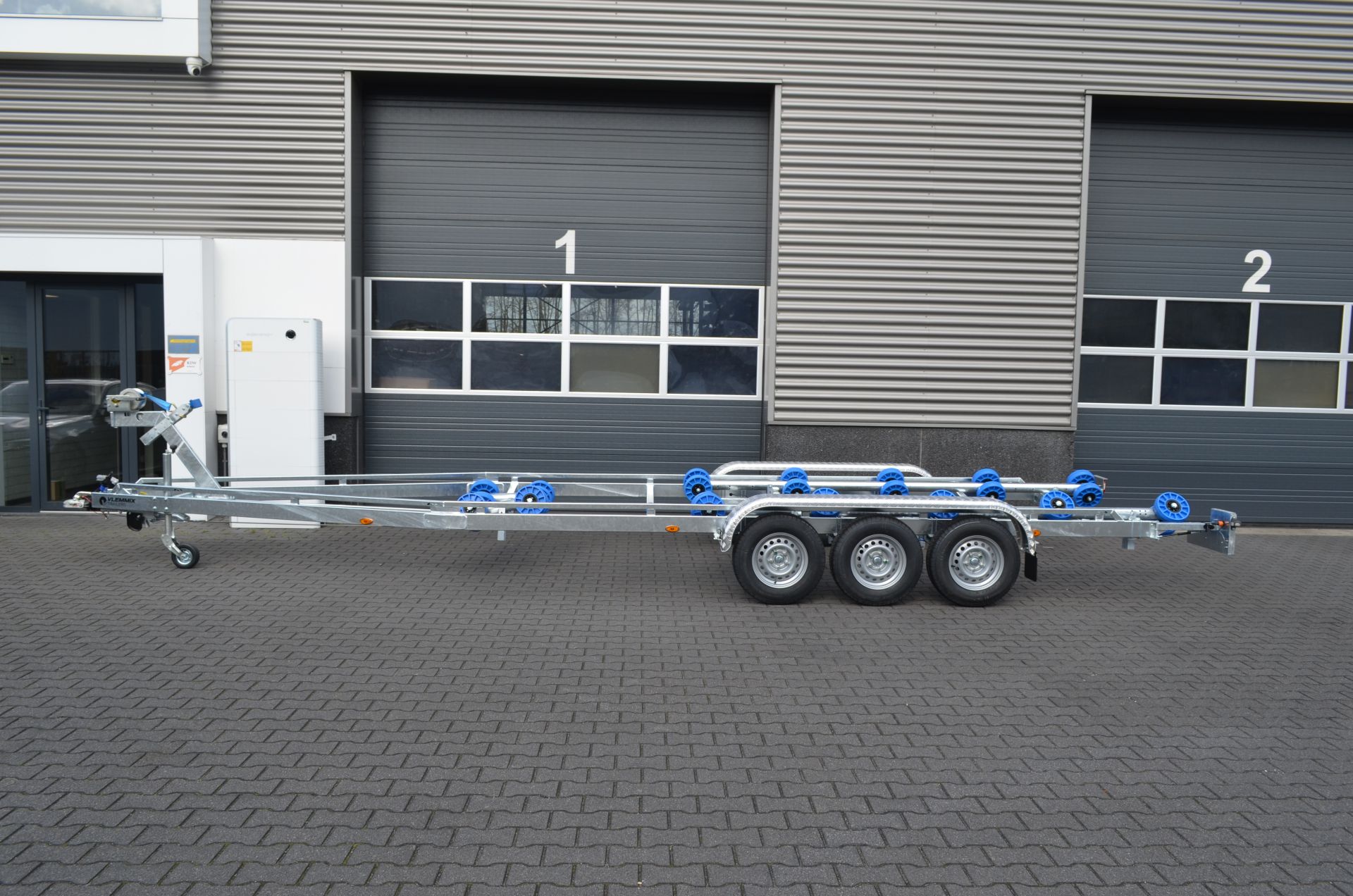

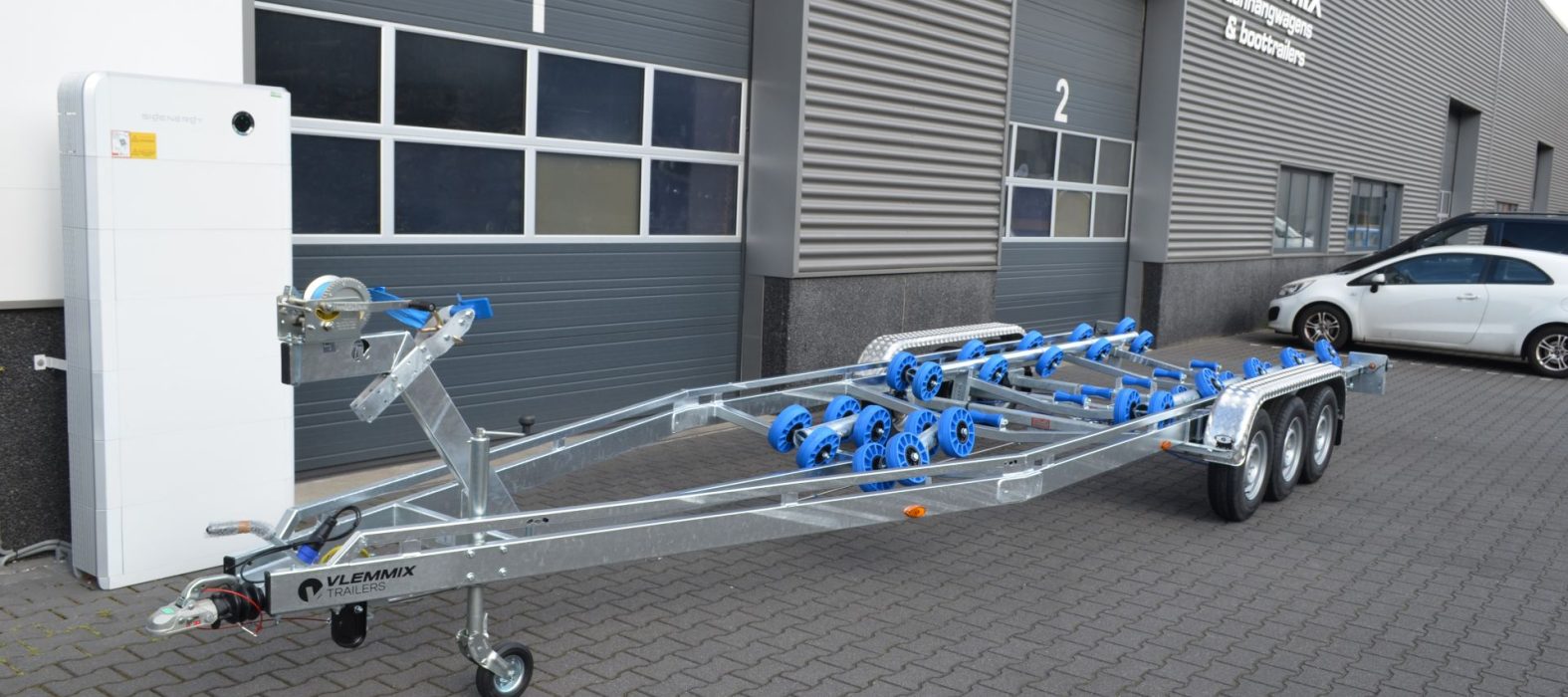

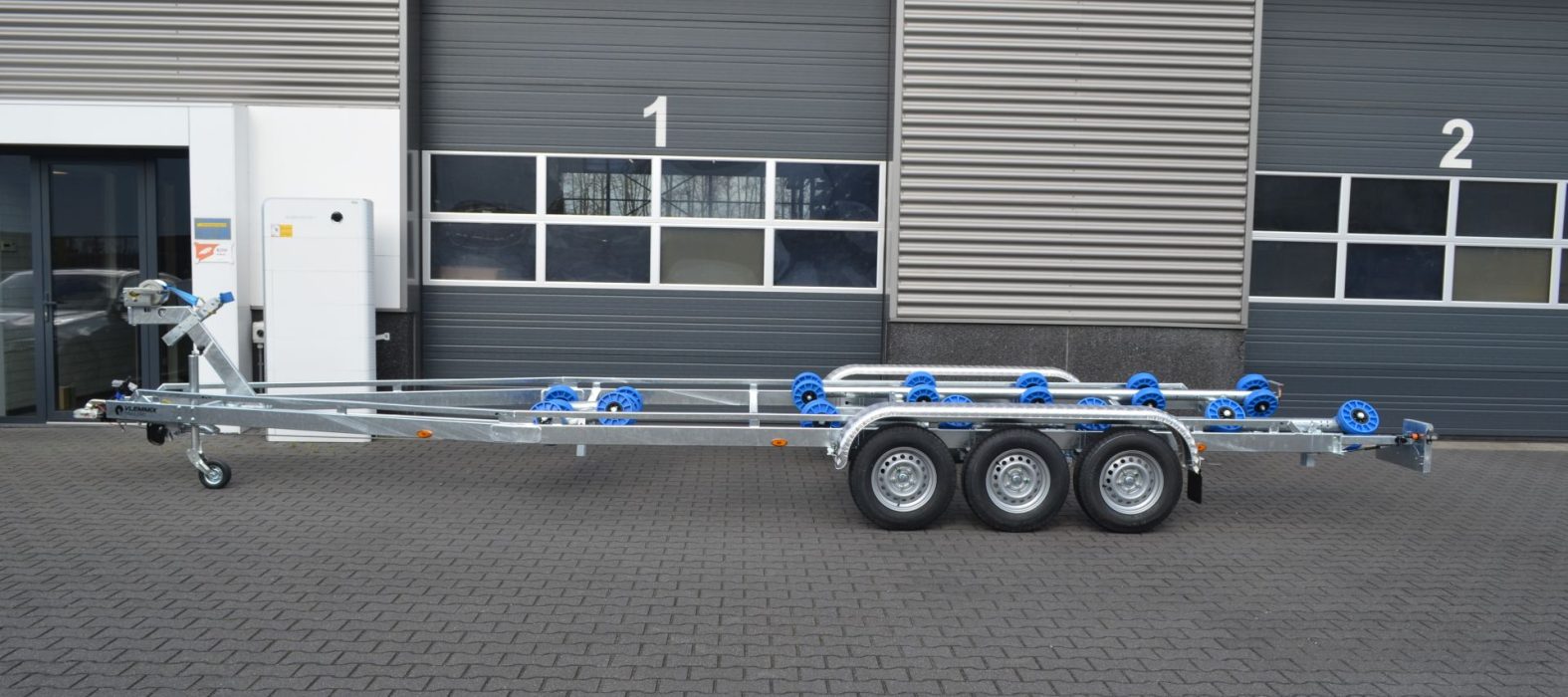

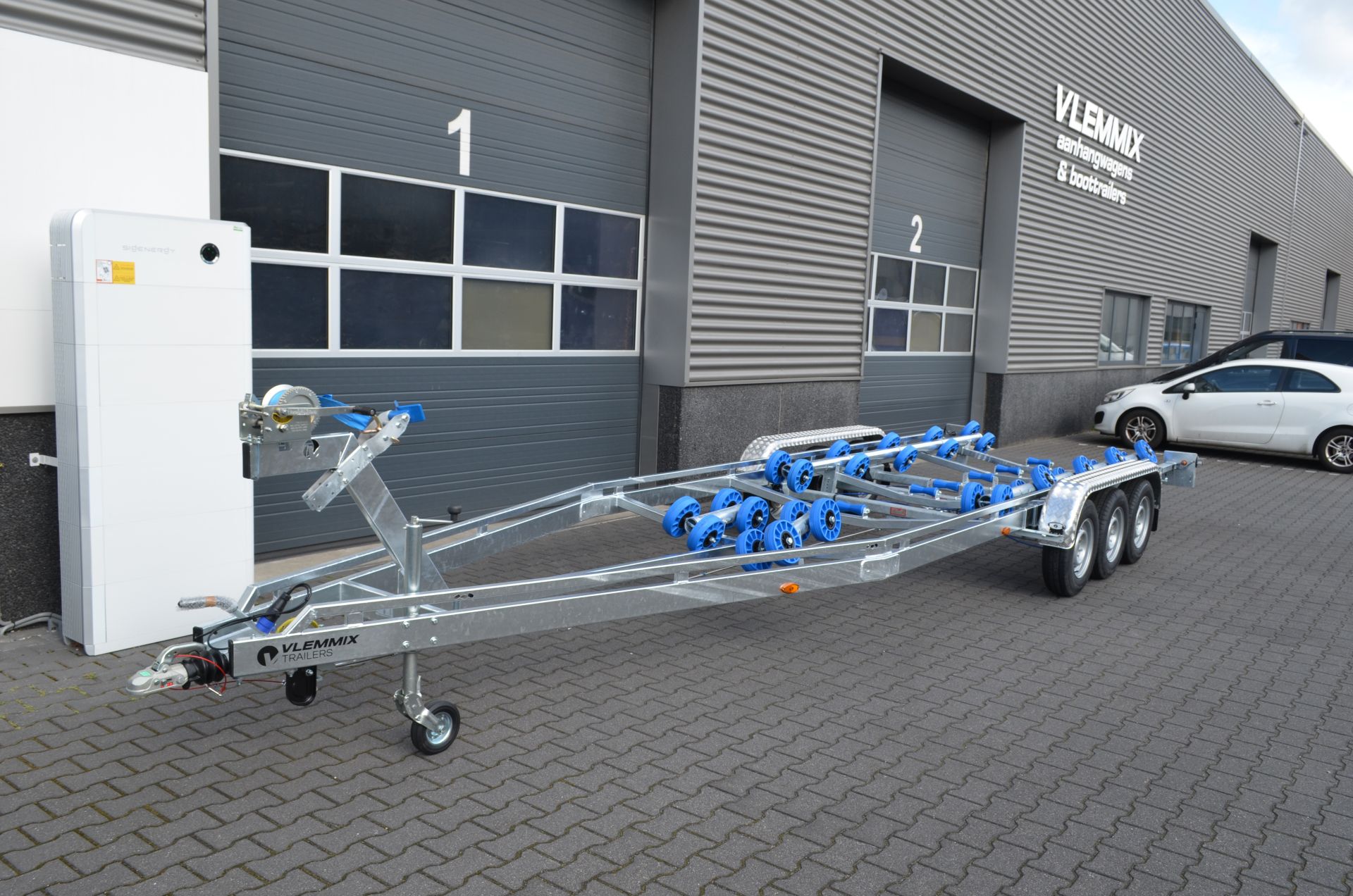

Flex-roll Trailer 8.4m 3x1350kg
Suitable for larger boats
The Flex-Roll Trailer 8.4 m is a stable and reliable trailer designed for transporting larger boats. With overall dimensions of 840 × 255 cm, this model offers generous support and a solid base for a wide range of hull shapes.
Generous load capacity for additional options
The trailer has an unladen weight of 660 kg and a payload capacity of 2840 kg, making it suitable for various types of lighter boats. Thanks to the 3×1350 kg axles, the trailer provides a dependable base with comfortable and stable handling, both on short journeys and longer distances.
Flex-Roll system
This trailer is equipped with the Flex-Roll system and features two 360 cm Flex-Roll assemblies at the rear and two 60 cm assemblies at the front. Together, these Flex-Rolls incorporate a total of 28 wheels made from microcellular polyurethane foam. This material consists of small cells in a honeycomb structure, making the rollers durable, dimensionally stable and wear-resistant. The Flex-Rolls are non-marking and fully recyclable.
Stable support during transport
The 8.4 m boat trailer is fitted as standard with Flex-Rolls with a diameter of 25 cm, ensuring smooth and stable guidance of the boat during loading, unloading and transport. Thanks to the height- and width-adjustable system, the rollers can be precisely adjusted to suit the shape of your boat. The bow support is also adjustable both horizontally and vertically, providing optimal support during transport. Additional Flex-Rolls can be added if required.
For a clean and durable finish, the trailer is fitted with waterproof, fold-away LED lighting. All wiring is neatly integrated into the chassis and connected via a 13-pin plug.
Personalise your Flex-Roll trailer
Would you like to expand the trailer with additional options? Below you will find an overview of all available accessories.
Optional extras
Bow guides (centre set)
Ensure the boat is guided neatly and straight onto the trailer during loading.
Shock absorbers
Improve driving behaviour and provide increased stability and comfort on the road.
V-construction
Creates additional space at the rear, allowing the engine to sit neatly between the beams.
Additional roller set – small (60 cm)
Extra rollers for smoother loading and unloading of the boat.
Additional roller set – large (360 cm)
Extra-long roller set for improved support on longer boats.
Adjustable keel roller with angle bracket
Guides the keel accurately towards the centre of the trailer.
Tilting keel roller system
Makes loading easier, especially on slipways or in shallow water.
Spare wheel fitted
Always have a spare wheel available when travelling.
Width marker board
Improves visibility when transporting wider trailers or boats.
Aluminium walkway (3 metres)
Allows safe and easy access to the trailer.
14” black alloy wheel
Gives the trailer a clean and modern appearance.
Tie-down eye (small)
Suitable for securing straps, mounted on the smaller box section.
Tie-down eye bolt (large)
Suitable for securing straps, mounted on the main chassis beam.
SCM-approved lock
Reduces the risk of theft and may offer insurance benefits.
Rinsing system
Rinses axles and brakes after use in salt water
(also available for twin- and triple-axle trailers).
Mounted toolbox
Convenient storage for tie-down straps and small tools.
Wheel chocks (set of 2)
Prevent the trailer from rolling when stationary.
Wheel trim set
Provides a neat and finished look to the wheels.
Electric winch
Makes pulling the boat onto the trailer easy and effortless.
Roller bow catcher
Ensures smooth and controlled capture of the bow.
Double roller bow catcher
Provides additional support for heavier boats.
Solid tyre version
Low-maintenance and suitable for use on hard surfaces.
Pneumatic tyre version
Offers improved ride comfort and better suspension during transport.
Powder-coated trailer
Additional protection with a durable coloured finish.
*Do you have any other special wishes? Please feel free to contact us to discuss the possibilities.
